Description

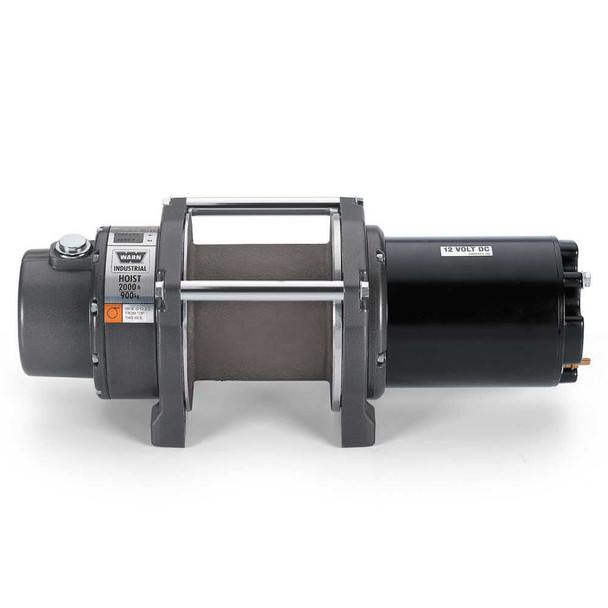

WARN DC2000 12V INDUSTRIAL HOIST - 63899
Mid-frame DC electric hoist lifts up to 2,000 lbf. (907 kg)
Note: This Winch will require winch mount for proper installation.
OVERVIEW:
The DC2000 hoist combines a powerful permanent magnet DC motor with robust sealing and our proven 3-stage all metal geartrain. Permanent grease lubrication means years of trouble free service. All WARN hoists incorporate an automatic mechanical brake that holds full rated load. The durable powder coated finish stands up to the elements and looks great. The DC2000 hoist is built on a compact midsize framed with integrated tie bars that's easy to install.
- Powerful Permanent Magnet DC Motor With Robust Sealing
- Proven 3-Stage Planetary Gear Train
- Permanent Grease Lubrication
- Automatic Cone Brake That Holds Full Rated Load
- Compact Midsize Frame With Integrated Tie Bars For Easy Installation
- Limited 1 Year Warranty
A remote and Control Pack MUST be purchased seperately.
SPECIFICATIONS:
| TYPE | Electric |
| RECOMMENDED USE | Industrial |
| VOLTAGE | 12 Volt |
| MOTOR TYPE | Permanent Magnet |
| THERMAL SHUTOFF | No |
| DRIVE GEAR TYPE | Planetary |
| GEAR REDUCTION RATIO | 261:1 |
| FREE SPOOLING | No |
| BRAKE TYPE | Automatic Cone Brake |
| LINE DIAMETER (IN) | No Rope |
| LINE LENGTH (FT) | No Rope |
| LINE MATERIAL | No Rope |
| FAIRLEAD TYPE | No Fairlead |
| CONFORMS TO J706 STANDARDS | No |
| REMOTE TYPE | No Remote |
| MOUNTING HOLE QUANTITY | 4 |
| OPERATION TYPE | Automatic |
| MOUNTING PATTERN LENGTH (IN) | 6 Inch |
| MOUNTING PATTERN WIDTH (IN) | 4-1/2 Inch |
| INCLUDES MOUNTING HARDWARE | No |
| COLOR | Black |
| MAX AMP DRAW/ LINE PULL | 54 Amp Draw/ 2000 Pound |
| MAX LINE PULL/ LINE SPEED | 2000 Pound/ 12.8 Feet Per Minute |
Fitment
MPN: |
63899 |
Fitment: |
Universal |
Type: |
Industrial Hoist |
Make: |
Universal |
Model: |
Universal |
