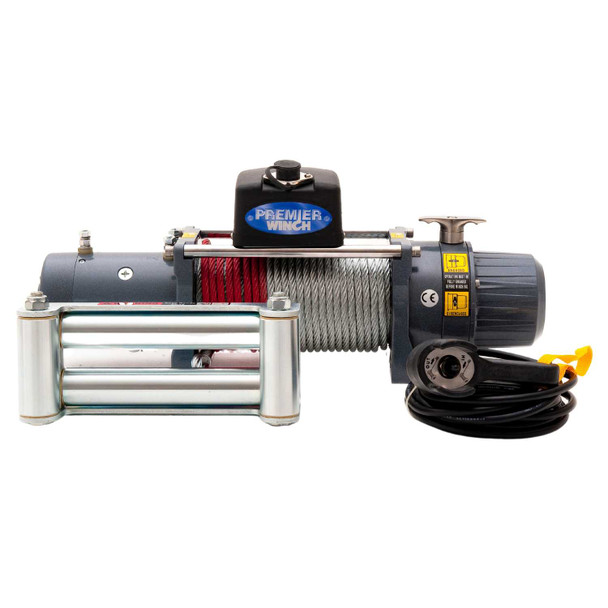

Description
Features
- Heavy duty series wound motor gives high torque and fast line speed.
- 3 stage planetary gearbox delivers the most reliable and durable performance even under worst conditions.
- Patented automatic cone brake holds full load easily. The greater the load on the wire rope, the greater amount of brake force is applied by the mechanism.
- Rotating ring gear free spool designed to pull and turn for rapid wire rope payout.
Specifications
| Line Pull | 4,082 kg |
| Motor 12V | 3,430 w |
| Motor 24V | 1,940 w |
| Gear Train | 3 stage planetary gears |
| Gear Ratio | 156 : 1 |
| Freespool | rotating ring gear |
| Brake | automatic, full load cone brake |
| Wire Rope Size | 8.3 mm x 30 m |
| Wire Rope Type | galvanized aircraft A7 x19 |
| Drum Size | 63.5 mm x 229 mm |
| Mounting Bolt Pattern | 254 mm x 114 mm |
Line Pull and Rope Capacity
| Layer of wire rope | Line Pull kg / lb | Total Rope on the Drum m/ft |
| 1st Layer | 4,082 / 9,000 | 6.1 / 20 |
| 2nd Layer | 3,335 / 7,352 | 13.5 / 44.3 |
| 3rd Layer | 2,820 / 6,217 | 22.3 / 73.2 |
| 4th Layer | 2,442 / 5,383 | 30 / 100 |
Line Speed and Amp. Draw (1st layer of rope on the drum)
| Line Pull kg/lb | Line Speed mpm/fpm | Amp. Draw 12V | Amp. Draw 24V |
| No Load | 13.4 / 44 | 55 | 30 |
| 907 / 2,000 | 4.6 / 15 | 110 | 65 |
| 1,814 / 4,000 | 3.4 / 11 | 200 | 100 |
| 2,722 / 6,000 | 2.7 / 9 | 230 | 130 |
| 3,629 / 8,000 | 2.3 / 7.5 | 260 | 170 |
| 4,082 / 9,000 | 2.0 / 6.4 | 350 | 210 |
Standard Accessories
- Detachable solenoid pack
- Remote control
- Wire rope with hook
- Roller fairlead
- 1.8m (6') 4 gauge battery lead
- Handsaver strap
Optional Accessories
- Mounting channel
- Snatch block
- Winch accessory kit
Package
| Winch Weight | 33 kg |
| Gross Weight | 47 kg |
| Box Dimension | 630 x 195 x 370 mm |
Warning
Winches are not to be used for the lifting or moving of persons.
Warranty
Each new winch is guaranteed against defects in workmanship and material defects for a period of twelve months from date of purchase. Wire ropes are not included under warranty.
