Description

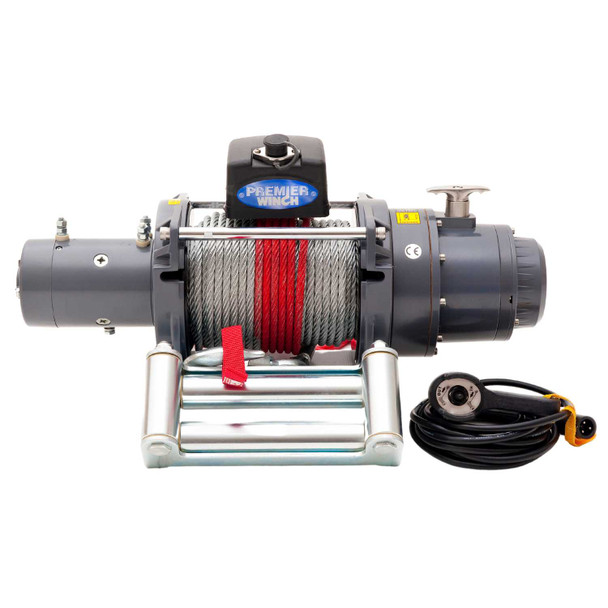

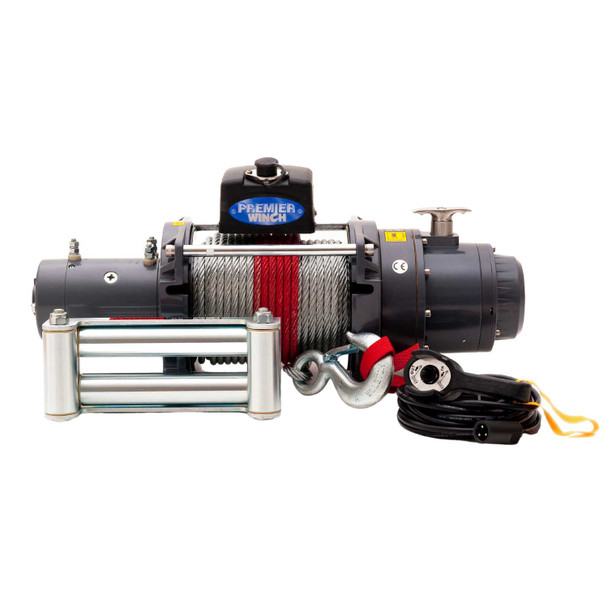

DV-15000ES
Features
- Heavy duty series wound motor gives high torque and fast line speed.
- 3 stage planetary gearbox delivers the most reliable and durable performance even under worst conditions.
- Patented automatic cone brake holds full load easily. The greater the load on the wire rope, the greater amount of brake force is applied by the mechanism.
- Rotating ring gear free spool designed to pull and turn for rapid wire rope payout.
- Heavy-duty sealed solenoid provides better water resistance and lower amp. draw.
Specifications
- Line Pull: 6,803 kg
- Motor 12V: 4,175 w
- Motor 24V: 2,684 w
- Gear Train: 3 stage planetary gears
- Gear Ratio: 315 : 1
- Freespool: rotating ring gear
- Brake: automatic, full load cone brake
- Wire Rope Size: 11 mm × 27 m
- Wire Rope Type: 6 x W(19) + IWRC
- Drum Size: 89 mm x 206 mm
- Mounting Bolt Pattern: 254 mm x 114.3 mm x 165.1 mm
Standard Accessories
- Detachable solenoid pack
- Remote control
- Wire rope with hook
- Roller fairlead
- 1.8m (6') 4 gauge battery lead
- Handsaver strap
Optional Accessories
- Cable tensioner
- Mounting channel
- Snatch block
- Winch accessory kit
Package
- Winch Weight: 42 kg
- Gross Weight: 69 kg
- Box Dimension: 700 × 250 × 420 mm
Fitment
Fitment: |
Universal |
Type: |
Electric Winch |
Make: |
Universal |
Model: |
Universal |
