Description

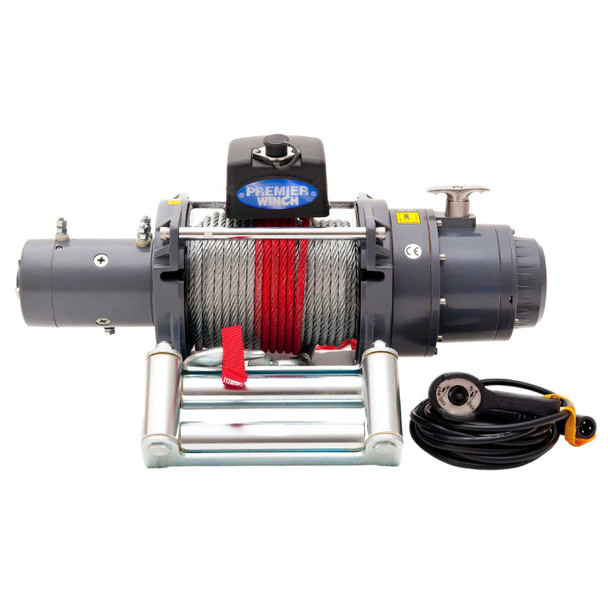

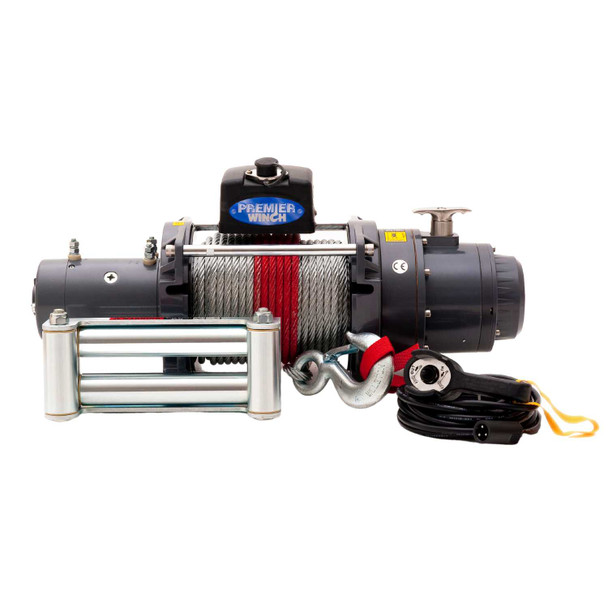

DV-15000ES
Features
- Heavy duty series wound motor gives high torque and fast line speed.
- 3 stage planetary gearbox delivers the most reliable and durable performance even under worst conditions.
- Patented automatic cone brake holds full load easily. The greater the load on the wire rope, the greater amount of brake force is applied by the mechanism.
- Rotating ring gear free spool designed to pull and turn for rapid wire rope payout.
- Heavy-duty sealed solenoid provides better water resistance and lower amp. draw.
Specifications
| Line Pull | 6,803 kg |
| Motor 12V | 4,175 w |
| Motor 24V | 2,684 w |
| Gear Train | 3 stage planetary gears |
| Gear Ratio | 315 : 1 |
| Freespool | rotating ring gear |
| Brake | automatic, full load cone brake |
| Wire Rope Size | 11 mm × 27 m |
| Wire Rope Type | 6 x W(19) + IWRC |
| Drum Size | 89 mm x 206 mm |
| Mounting Bolt Pattern | 254 mm x 114.3 mm x 165.1 mm |
Line Pull and Rope Capacity
| Layer of wire rope | Line Pull kg / lb | Total Rope on the Drum m/ft |
| 1st Layer | 6,803 / 15,000 | 5.3 / 17.4 |
| 2nd Layer | 5,575 / 12,292 | 11.8 / 38.7 |
| 3rd Layer | 4,723 / 10,413 | 19.5 / 64 |
| 4th Layer | 4,097 / 9.033 | 27 / 89 |
Line Speed and Amp. Draw (1st layer of rope on the drum)
| Line Pull kg/lb | Line Speed mpm/fpm | Amp. Draw 12V | Amp. Draw 24V |
| No Load | 6.9 / 22 | 60 | 50 |
| 1,814 / 4,000 | 1.6 / 5.4 | 180 | 90 |
| 3,629 / 8,000 | 1.2 / 3.8 | 280 | 190 |
| 4,535 / 10,000 | 1 / 3.3 | 330 | 220 |
| 5,443 / 12,000 | 0.9 / 2.9 | 385 | 260 |
| 6,805 / 15,000 | 0.8 / 2.5 | 460 | 340 |
Standard Accessories
- Detachable solenoid pack
- Remote control
- Wire rope with hook
- Roller fairlead
- 1.8m (6') 4 gauge battery lead
- Handsaver strap
Optional Accessories
- Cable tensioner
- Mounting channel
- Snatch block
- Winch accessory kit
Package
| Winch Weight | 42 kg |
| Gross Weight | 69 kg |
| Box Dimension | 700 × 250 × 420 mm |
Warning
Winches are not to be used for the lifting or moving of persons.
Warranty
Each new winch is guaranteed against defects in workmanship and material defects for a period of twelve months from date of purchase. Wire ropes are not included under warranty.
