Description

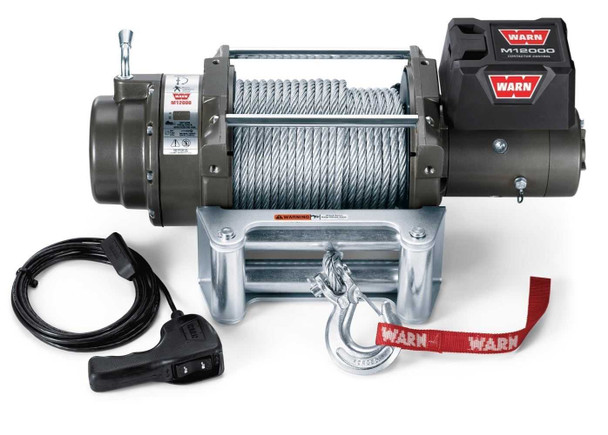

This Warn Industries M12000 Series 12 volt electric Winch is vehicle mounted and has a pull capacity of 12,000 pound. It has a 125 feet wire rope.
Please Note: This Winch will require winch mount for proper installation.
Features:
Champion workhorse for heavy-duty winching. 3-stage planetary gear train combined with a 4.6hp series wound motor produce 12,000 lbs. of pulling power. Design is low profile so it fits where you want it.
- 12,000 lb. (5,440 kg) pulling capacity (single line)
- Large frame winch design is designed to handle heavier winch loads
- Series-wound, high-speed motor provides fast line speed and strong pulls
- Brake provides superior control while winching
- Remote-mount control box allows for various mounting options
- Durable 3-stage planetary geartrain for smooth, reliable, operation
- Remote control with 12' (3.7m) lead
- Chip-resistant powder-coated finish
- 125' of 3/8" (38m of 9.5mm) diameter wire rope
- Limited Lifetime Warranty for Mechanical Components. Limited Seven (7) year warranty for Electrical Components.
Specifications:
| TYPE | Electric |
| MOUNT TYPE | Vehicle Mounted |
| RECOMMENDED USE | Vehicle Recovery |
| VOLTAGE | 12 Volt |
| MOTOR HORSEPOWER | 4.6 Horsepower |
| ELECTRICAL CONTROL TYPE | Contactors |
| MOTOR TYPE | Series Wound |
| THERMAL SHUTOFF | No |
| DRIVE GEAR TYPE | Planetary |
| GEAR REDUCTION RATIO | 261:1 |
| FREE SPOOLING | Yes |
| BRAKE TYPE | Mechanical Cone |
| LINE DIAMETER (IN) | 3/8 Inch |
| LINE LENGTH (FT) | 125 Feet |
| LINE MATERIAL | Steel |
| FAIRLEAD TYPE | Roller |
| CONFORMS TO J706 STANDARDS | No |
| REMOTE TYPE | Handheld Remote Switch |
| MOUNTING HOLE QUANTITY | 4 |
| OPERATION TYPE | Automatic |
| MOUNTING PATTERN LENGTH (IN) | 10 Inch |
| MOUNTING PATTERN WIDTH (IN) | 4-1/2 Inch |
| INCLUDES MOUNTING HARDWARE | No |
| COLOR | Gray |
| MAX LINE PULL/ LINE SPEED | 12000 Pound/ 3.86 Feet Per Minute |
| MAX AMP DRAW/ LINE PULL | 440 Amp Draw/ 12000 Pound |
Fitment
By Application: |
Trucks, Jeeps and SUVs Winches |
By Series: |
Heavyweight Winches |
MPN: |
17801 |
Fitment: |
Universal |
Type: |
Electric Winch |
Make: |
Universal |
Model: |
Universal |
