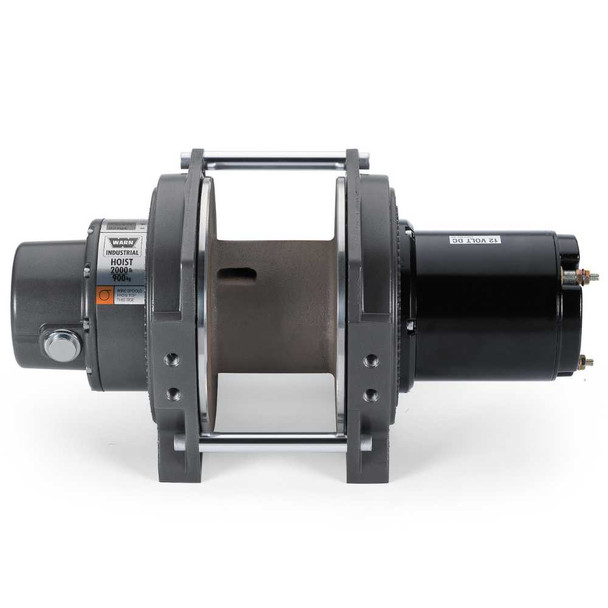

WARN DC2000 12V ELECTRIC HOIST, LARGE FRAME - 70469
Please Note: This product requires a compatible bumper or mounting plate to be properly mounted to your vehicle. Please visit our Mounting & Protection category for available options.
OVERVIEW:
The DC2000 hoist combines a powerful permanent magnet DC motor with robust sealing and our proven 3-stage all metal geartrain. Permanent grease lubrication means years of trouble free service. All WARN hoists incorporate an automatic mechanical brake that holds full rated load. The durable powder coated finish stands up to the elements and looks great. The DC2000 hoist is built on WARN's robust large frame design with a cast aluminum drum to provide plenty of wire rope capacity. Controls and accessories available separately.
- Powerful Permanent Magnet DC Motor With Robust Sealing
- Proven 3-Stage Planetary Gear Train
- Permanent Grease Lubrication
- Automatic Cone Brake That Holds Full Rated Load
- Large Frame With A Cast Aluminum Drum For Plenty Of Wire Rope Capacity
- Limited 1 Year Warranty
SPECIFICATIONS:
| TYPE | Electric |
| RECOMMENDED USE | Industrial |
| VOLTAGE | 12 Volt |
| MOTOR TYPE | Permanent Magnet |
| THERMAL SHUTOFF | No |
| DRIVE GEAR TYPE | Planetary |
| GEAR REDUCTION RATIO | 261:1 |
| FREE SPOOLING | No |
| BRAKE TYPE | Automatic Cone Brake |
| LINE DIAMETER (IN) | No Rope |
| LINE LENGTH (FT) | No Rope |
| LINE MATERIAL | No Rope |
| FAIRLEAD TYPE | No Fairlead |
| CONFORMS TO J706 STANDARDS | No |
| REMOTE TYPE | No Remote |
| MOUNTING HOLE QUANTITY | 8 |
| OPERATION TYPE | Automatic |
| MOUNTING PATTERN LENGTH (IN) | 6 Inch |
| MOUNTING PATTERN WIDTH (IN) | 4-1/2 Inch |
| INCLUDES MOUNTING HARDWARE | No |
| COLOR | Gray |
| MAX AMP DRAW/ LINE PULL | 115 Amp Draw/ 2000 Pound |
| MAX LINE PULL/ LINE SPEED | 2000 Pound/ 11.9 Feet Per Minute |
Fitment
MPN: |
70469 |
Fitment: |
Universal |
Type: |
Industrial Hoist |
Make: |
Universal |
Model: |
Universal |
