Description

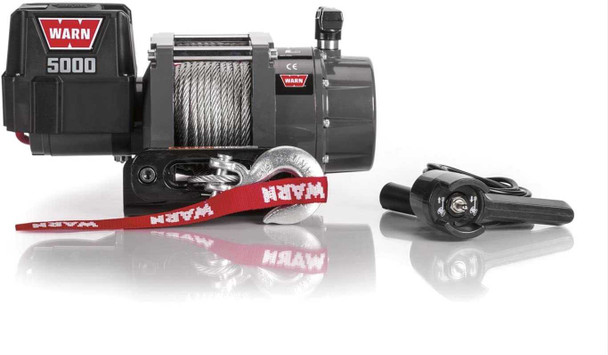

The 5000 DC boasts a ready-for-anything attitude. Bring on the big loads, the big jobs no one wants to tackle. Couple 60 Foot of wire rope with the powerful three-stage planetary gear train and you've got a peerless load-mover.
Please Note: This product requires a compatible bumper or mounting plate to be properly mounted to your vehicle.
Features:
- Strong 1.9 Horsepower Permanent Magnet DC Motor
- Durable, Reliable Three-Stage Planetary Geartrain
- Dynamic And Mechanical Braking For Excellent Control And Holding Power
- Pulls Up To 5,000 Pounds (2268 KiloGram)
Specifications:
- Capacity: 5,000 lbs. (2268 kg) single-line
- Power: 12V DC
- Motor: Permanent magnet, 3.0” diameter
- HP: 1.9 hp
- Controls: Remote with 12’ (3.7 m) lead
- Gear train: 3-stage planetary
- Gear Ratio: 216:1
- Clutch (Freespool): Lever – Multi-Directional
- Brake: Dynamic and mechanical braking
- Warranty: Limited one year
- Steel rope: 1/4” x 60’ (6.4mm x 18.3m)
- Drum Diameter: 2.5” (63.5mm)
- Fairlead: Hawse
- Electrical leads: 2–6’ (1.8 m) x 6 Gauge cable
- Duty Cycle: Intermittent
- Mounting Bolt Patten: 4 holes - 4.5” x 4.26” (114.3mm x 108.3mm)
- Length: 14.83” (376.8mm)
- Weight: 42 Lbs. (19.1 kg)
Fitment
By Application: |
Utility Winches |
By Series: |
Classic and Specialty Winches |
MPN: |
99963 |
Fitment: |
Universal |
Type: |
Electric Winch |
Make: |
Universal |
Model: |
Universal |
