Description

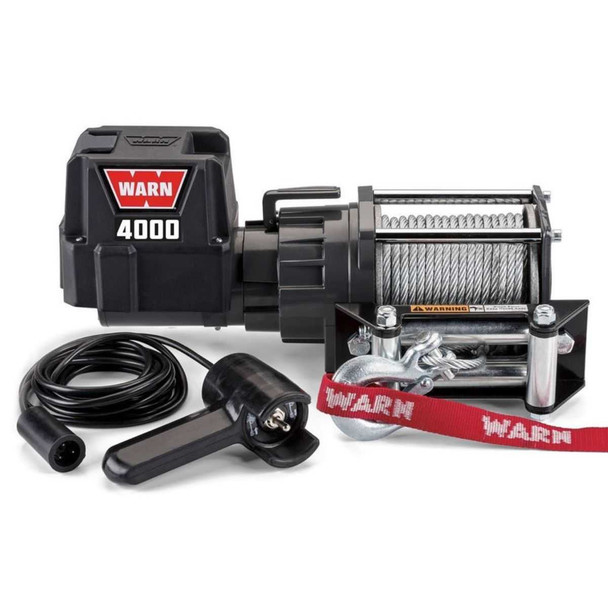

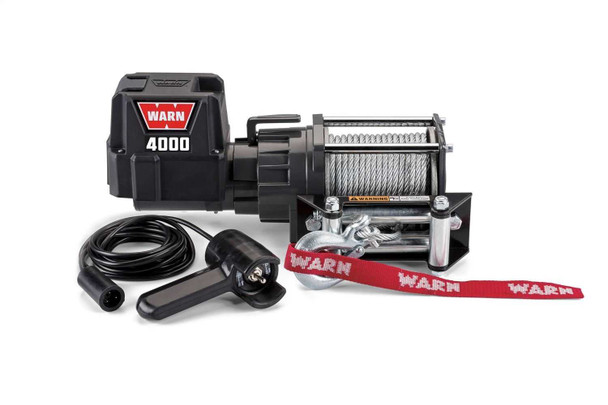

This Warn Industries 4000 DC Series 12 volt electric Winch is vehicle mounted and has a pull capacity of 4,000 pound. It has 43' feet of steel winch rope and comes with a 12' corded remote.
Please Note: This product requires a compatible bumper or mounting plate to be properly mounted to your vehicle.
Features:
The 4000 DC has heavy-duty pulling power; perfect for loading a heavy vehicle onto a trailer or winching the big loads at work. With durable steel rope, a roller fairlead, and a sturdy remote control, this winch is ready to go to work.
- 4,000 lb. (1814 kg) pulling capacity lets you move a variety of heavy objects
- 12-volt power for portability, ideal for use on trailers or hitch mounts
- Outstanding duty cycle, durability, and reliability
- Powerful 1.9 horsepower permanent magnet DC motor with outstanding duty cycle
- 43' of 7/32" (13m of 6mm) wire rope with hook and clasp
- Remote plug accepts 12' (3.7m) corded remote (included)
- Convenient easy-lift clutch lever
- Durable, reliable three-stage planetary geartrain
- Dynamic and mechanical braking for excellent control and holding power
Specifications:
| TYPE | Electric |
| MOUNT TYPE | Vehicle Mounted |
| RECOMMENDED USE | Trailer |
| VOLTAGE | 12 Volt |
| MOTOR HORSEPOWER | 1.9 Horsepower |
| MOTOR TYPE | Permanent Magnet |
| THERMAL SHUTOFF | No |
| DRIVE GEAR TYPE | Planetary |
| GEAR REDUCTION RATIO | 176:1 |
| FREE SPOOLING | No |
| BRAKE TYPE | Mechanical And Dynamic |
| LINE DIAMETER (IN) | 7/32 Inch |
| LINE LENGTH (FT) | 43 Feet |
| LINE MATERIAL | Steel |
| FAIRLEAD TYPE | Roller |
| CONFORMS TO J706 STANDARDS | No |
| REMOTE TYPE | 12 Feet Wired |
| MOUNTING HOLE QUANTITY | 3 |
| OPERATION TYPE | Automatic |
| MOUNTING PATTERN LENGTH (IN) | 2-1/2 Inch |
| MOUNTING PATTERN WIDTH (IN) | 3.1 Inch |
| INCLUDES MOUNTING HARDWARE | Yes |
| COLOR | Black |
| MAX AMP DRAW/ LINE PULL | 240 Amp Draw/ 4000 Pound |
| MAX LINE PULL/ LINE SPEED | 4000 Pound/ 6.9 Feet Per Minute |
Fitment
By Application: |
Utility Winches |
By Series: |
Classic and Specialty Winches |
MPN: |
94000 |
Fitment: |
Universal |
Type: |
Electric Winch |
Make: |
Universal |
Model: |
Universal |
