Description

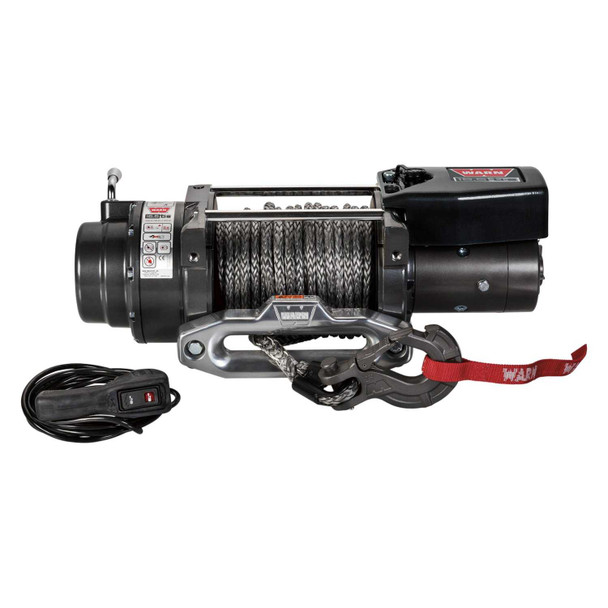

This Warn Industries 16.5ti-S 12 volt electric Winch is vehicle mounted and has a pull capacity of 16,500 pound. It has a 80 feet Spydura Pro rope. Note: This Winch will require winch mount for proper installation.
Please Note: This product requires a compatible bumper or mounting plate to be properly mounted to your vehicle.
Features:
With a massive 16,500 lbs. of pulling capacity, the 16.5ti-s is not only the most powerful truck winch we make, it's also now available with 80' of 3/8" lightweight, easy-to-handle Spydura® Pro synthetic rope. The rope's heat-treated construction provides maximum tensile strength, and the temperature-resistant sleeve on the first layer provides maximum heat protection. This winch also features a thermometric indicator which provides operator feedback during the winching process and is great for the biggest, heaviest vehicles on or off the pavement.
- 16,500 lb. capacity
- Includes 80' of 3/8" Spydura Pro synthetic rope
- Includes 18,000 lb capacity EPIC hook
- Thermometric indicator LED provides operator feedback
- Large-frame winch architecture mounts feet forward
- Contactor control for the ultimate in reliable electronics
- Powerful, efficient series-wound motor
- Durable, smooth three-stage planetary gear train
- Best-in-class cone brake
- Limited Lifetime Warranty for Mechanical Components. Limited Seven (7) year warranty for Electrical Components.
Please note: the thermometric indicator on the 16.5 is not compatible with the HUB Wireless receiver, so heat warning functionality isn't available for 16.5 winches when using the HUB Wireless Receiver.
Specifications:
| TYPE | Electric |
| MOUNT TYPE | Vehicle Mounted |
| RECOMMENDED USE | Vehicle Recovery |
| VOLTAGE | 12 Volt |
| MOTOR HORSEPOWER | 4.6 Horsepower |
| ELECTRICAL CONTROL TYPE | Contactors |
| MOTOR TYPE | Series Wound |
| DRIVE GEAR TYPE | Planetary |
| GEAR REDUCTION RATIO | 315:1 |
| FREE SPOOLING | Yes |
| BRAKE TYPE | Direct Drive Cone |
| LINE DIAMETER (IN) | 3/8 Inch |
| LINE LENGTH (FT) | 80 Feet |
| LINE MATERIAL | Synthetic |
| FAIRLEAD TYPE | Hawse |
| CONFORMS TO J706 STANDARDS | No |
| REMOTE TYPE | 12 Feet Wired |
| MOUNTING HOLE QUANTITY | 4 |
| OPERATION TYPE | Automatic |
| MOUNTING PATTERN LENGTH (IN) | 10 Inch |
| MOUNTING PATTERN WIDTH (IN) | 4-1/2 Inch |
| INCLUDES MOUNTING HARDWARE | No |
| MAX AMP DRAW/ LINE PULL | 507 Amp Draw/ 16500 Pound |
| MAX LINE PULL/ LINE SPEED | 16500 Pound/ 3.24 Feet Per Minute |
Fitment
By Application: |
Trucks, Jeeps and SUVs Winches |
By Series: |
Heavyweight Winches |
MPN: |
97740 |
Fitment: |
Universal |
Type: |
Electric Winch |
Make: |
Universal |
Model: |
Universal |
