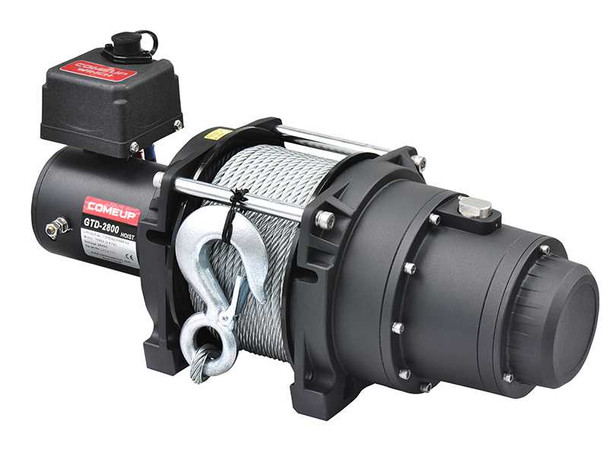

COMEUP GTD-2800 | 1,270 kg / 2,800 lb Heavy Duty Hoist - PN 753033 (24V)

GTD-2800 | 1,270 kg Heavy Duty Hoist

• Provides an answer to the health and safety recommendations for manual lifting
• High efficient low amp. draw and sealed permanent magnet motor.
• Lightweight and compact design is ideal for easy installation.
• Mechanical cone brake and permanent motor dynamic brakes together for safe, controlled load.
• Waterproof industrial remote control with 5 m lead
• Full metal 3 stage planetary gear train for greater pulling force.
• Submersible sealed contactor handles high amps and allows higher duty cycle
• In compliance with standard of ASME B30.5 for D/d≥18 and rope safety factor ≥3.5

Specifications:

• Part number: PN 753033 (24V)
• Rated load: 1,270 kg  (2,800 lb)
• Line speed (at 1^st layer of rope):
  24V : 6.0 mpm / 19.7 fpm 22A at no load
           4.4 mpm / 14.4 fpm 100A at full load
• Motor: 1,940 w / 2.6 hp 24V permanent magnet
• Gear ratio: 3-stage planetary gear 261:1
• Brake (outside the drum): Mechanical cone brake and permanent motor dynamic brakes together
• Hoist construction: Aluminum die cast housings with cast iron drum

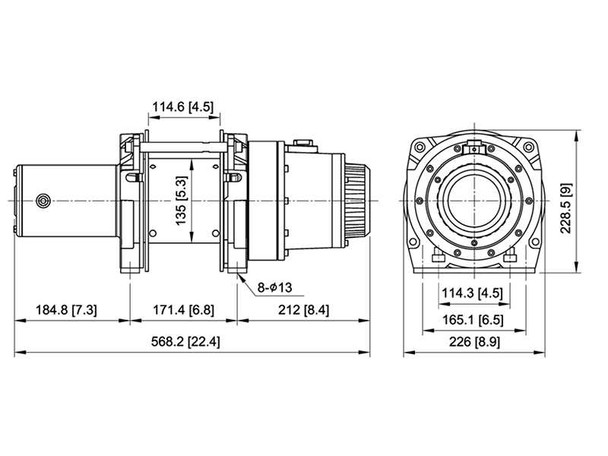

• Drum size: 135 x 114.6 mm (5.3” x 4.5")
• Control: Remote control with 5 m (17') lead
• Rope type: Galvanized aircraft A7 x 19
• Rope size: 7.9 mm x 28 m (5/16" x 92')
• Mounting bolt pattern: 114.3 x 171 mm (4.5” x 6.8”) ; 165.1 x 171 mm (6.5" x 6.8")

  Standard Compliance:
  - CE Machinery Directive 2006/42/EC
  - CE EMC Directive 2014/30/EU
  - ASME B30.5

Performance:

Warning

• The hoist is not intended to be used in any manner for the movement or lifting of personnel.
• The rated load shown is based on the first layer of rope on the drum.
• The rope winding on the drum shall remain 5 wraps from the drum.


Warranty

• Each new hoist is guaranteed against defects in workmanship and material defects for a period of twelve months from date of purchase. Wire rope are not included under warranty.

Accessories:

• Wire rope 7.9 mm x 28m w/clevis hook (Sold separately)
• Remote control with 5 m lead (Sold separately)
• Control (Sold separately)

Package:

• Hoist weight: 48.1 kg / 106 lb (including rope & hook)
• Gross weight: 54.8 kg / 120.8 lb
• Box dimension (L x D x H): 620 x 360 x 260 mm (24.4” x 14.2” x 10.2”)
