COMEUP GTD-1200 | 12V 544 kg / 1,200 lb Heavy Duty Hoist - PN 751321 (12V)

GTD-1200 | 544 kg Heavy Duty Hoist

• Provides an answer to the health and safety recommendations for manual lifting.
• High efficient low amp. draw and sealed permanent magnet motor.
• Lightweight and compact design is ideal for easy installation.
• Mechanical cone brake and permanent motor dynamic brakes together for safe, controlled load.
• Waterproof industrial remote control with 5 m lead.
• Full metal 3 stage planetary gear train for greater pulling force.
• Submersible sealed contactor handles high amps and allows higher duty cycle.
• In compliance with standard of ASME B30.5 for D/d≥18 and rope safety factor ≥3.5

Specifications:

• Part number: PN 751321 (12V)
• Rated load: 544 kg / 1,200 lb
• Line speed (at 1^st layer of rope):
  12V : 7.4 mpm / 24.3 fpm 30A at no load
           5.5 mpm / 18.0 fpm 130A at full load
• Motor: 900 w / 1.2 hp 12/24V permanent magnet
• Gear ratio: 3-stage planetary gear 216:1
• Brake (outside the drum): Mechanical cone brake and permanent motor dynamic brakes together
• Hoist construction: Aluminum die cast housings with cast iron drum

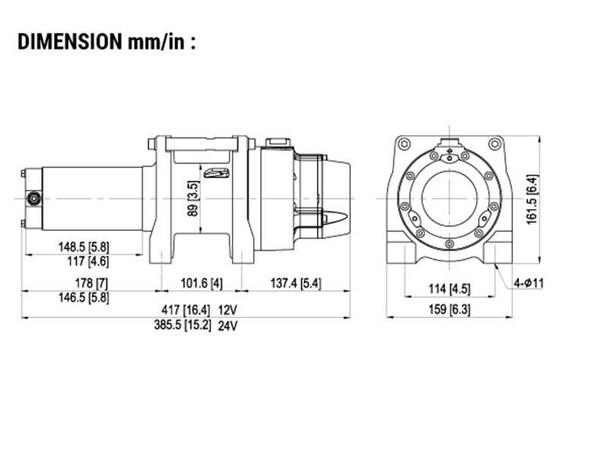

• Drum size: 89 x 73 mm (3.5” x 2.9")
• Control: Remote control with 5 m (17') lead
• Rope type: Galvanized aircraft A7 x 19
• Rope size: 4.8 mm x 18.3 m (3/16" x 60')
• Mounting bolt pattern: 114 x 101.6 mm (4.5” x 4”)

  Standard Compliance:
  - CE Machinery Directive 2006/42/EC
  - CE EMC Directive 2014/30/EU
  - ASME B30.5

Performance:

Warning

• The hoist is not intended to be used in any manner for the movement or lifting of personnel.
• The rated load shown is based on the first layer of rope on the drum.
• The rope winding on the drum shall remain 5 wraps from the drum.


Warranty

• Each new hoist is guaranteed against defects in workmanship and material defects for a period of twelve months from date of purchase. WIRE ROPES ARE NOT INCLUDED UNDER WARRANTY.

Accessories:

• Wire rope 4.8 mm x 18.3 m w/clevis hook (Sold separately)
• Remote control with 5 m lead (Sold separately)
• Control box (Sold separately)

Package:

• Hoist weight (including rope): 15.3 kg / 33.7 lb
• Gross weight : 20.2 kg / 44.5 lb
• Box dimension, (L x D x H) : 504 x 214 x 363 mm (19.8" x 8.4" x 14.3")
