COMEUP Cub 3s | 3,000 lb ATV Powersports 4X4 Electric Winch - PN 129300

Cub 3s | 3,000 lb Powersports Winch

• High efficient low amp. draw and sealed permanent magnet motor.
• Lightweight and compact design is ideal for easy installation.
• Winch drum centered avoids tire interference of rope and provides streamlined appearance.
• Mechanical spring applied and permanent magnet motor dynamic brakes together.
• Cam activated clutch device for rapid rope payout.
• Full metal 3 stage planetary gear train for greater pulling force.
• Submersible sealed contactor handles high amps and allows higher duty cycle.

Specifications:

• Part number:  PN 129300
• Rated line pull: 1,361 kg (3,000 lb) single line
• Motor:  800 w / 1.0 hp 12V permanent magnet
• Gear train: 3-stage planetary 138.5:1
• Clutch (freespooling): Sliding pin and ring gear
• Brake: Mechanical spring applied and permanent magnet motor dynamic brakes together
• Winch construction: Aluminum die cast housings and drum

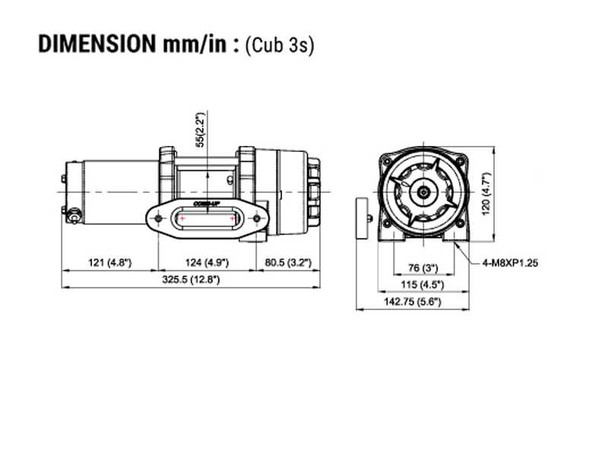

• Drum size: 55 x 75 mm (2.2” x 3”)
• Control: Handlebar rocker switch
• Rope type: Synthetic rope
• Rope size: 4.8 mm x 15.2 m (3/16” x 50’)
• Mounting bolt pattern: 76 x 124 mm (3” x 4.9”)

  Standard Compliance:
  - CE Machinery Directive 2006/42/EC
  - CE EMC Directive 2014/30/EU

Performance:

Warning

• The winch is not intended to be used in any manner for the movement or lifting of personnel.
• The rated line pull shown is based on the first layer of wire rope on the drum.
• The wire rope winding on the drum shall remain 10 wraps from the drum.

Warranty

• Limited lifetime warranty for mechanical components and one(1) year warranty for electrical components from date of purchase. Wire/Synthetic ropes are not included under warranty.

Accessories:

• Synthetic rope 4 mm x 15.2 m w/safety hook
• Handlebar rocker switch kit
• Hawse fairlead
• Mounting hardware
• Handlebar hardware
• Contactor pack

Package:

• Winch weight (including rope) : 7.2 kg / 15.9 lb
• Gross weight : 11.5 kg / 25.3 lb
• Box dimension, (L x D x H) : 349 x 331 x 144 mm (13.7" x 13" x 5.7")
