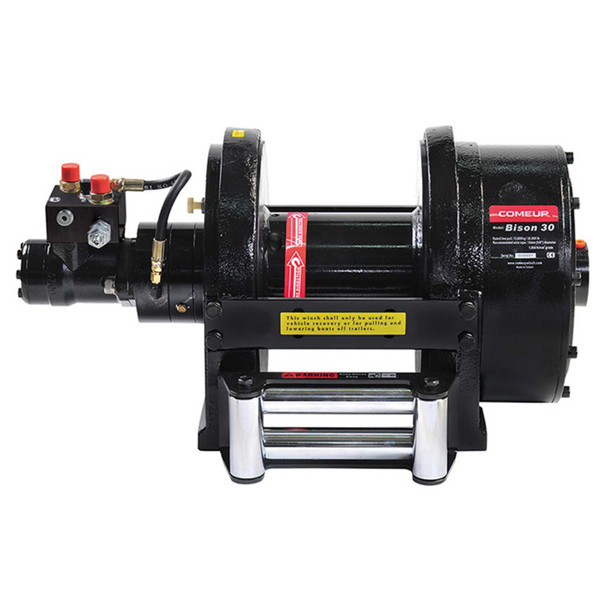

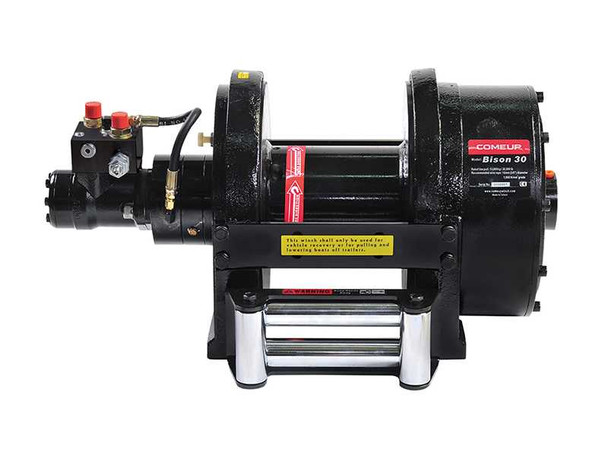

COMEUP Bison 30 | 30,000 lb / 13.6 Tonnes Hydraulic Recovery Winch - PN 683030 (Std. drum)

Bison 30 | 13.6 Tonnes Hydraulic Recovery Winch

• Powered by a PTO (power take off unit) driven pump with variable recovery speeds for high working rate
• 155.7 cm³/rev highly efficient and constant operating torque motor with 13,600 kg / 30,000 lb capacity
• Hardened 2 stage planetary gear train with 41:1 gear ratio provides faster line speed
• Built-in air clutch for rapid wire rope payout
• The Multi-Disc Brake (MDB) patented for holding full load
• Great for severe duty trailers, roll-back carriers, and commercial recovery application
• Roller fairlead, cable tensioner and two ways counterbalance valve supplied
• Meets SAE J706 revised AUG2003, CE Machinery Directive 2006/42/EC.

Specifications:

• Part number: PN 683030 (Std. drum)
• Rated line pull: 13,600 kg / 30,000 lb (SAE J706 rating)
• Line speed (at 1^st layer of rope) : 5 mpm at 60 l/min (16 fpm at 15.9 g/min)
• Operation pressure: 175 bar / 2,540 psi
• Max oil flow: 60 l/min (15.9 g/min)
• Hydraulic motor: 155.7 cm³/rev (9.5 in³/rev)
• Gear ratio: 2-stage planetary gear 41:1
• Winch construction: Cast housings with steel drum
• Clutch (Freespooling): Output shaft disengaged
• Brake: Multi-Disc Brake (MDB) patented and counterbalance valve supplied
• Rotation of winch: Wire rope shall be under-wound orientation only
• Drum barrel diameter: 152.5 mm (6")
• Drum flange diameter: 343 mm (13.5”)
• Distance between flanges: 203 mm (8") - Std. drum
• Mounting bolt pattern: 190.5 x 304.8 mm (7.5” x 12”) ; 266.7 x 304.8 mm (10.5” x 12”) - Std. drum
• Wire rope recommended: 16 mm x 43 m ( 5/8” x 141’) - Std. drum
  1,960 N/mm² (EIPS) grade with a minimum breaking strength of 179 kN (40,167 lbf) required for SAE J706 rating

Performance:

Warning

• The winch is not intended to be used in any manner for the movement or lifting of personnel.
• The rated line pull shown is based on the first layer of rope on the drum.
• The rope winding on the drum shall remain 5 wraps from the drum.


Warranty

• Each new winch is guaranteed against defects in workmanship and material defects for a period of twelve months from date of purchase.

Accessories:

• Roller fairlead
• Counterbalance valve
• Cable tensioner

Package:

• Winch weight : 175 kg / 386 lb - Std. drum
• Gross weight : 198 kg / 437 lb - Std. drum
• Box dimension : 900 x 510 x 530 mm (35.4” x 20.1” x 20.9”) - Std. drum
